Lithium Iron Phosphate Battery 48V 30ah
Lithium iron phosphate battery 48V 30ah
Battery is a vital component for self-sufficiency power supply in a modern RV, motorhome,and marine at the sea. Lithium iron phosphate battery 48V 30ah are one of the best and most popular choices for customers looking for power storage and supplying. 12 volt lithium battery for caravan and Marine will most often be constructed as lithium iron phosphate batteries which are also known as LiFePO4.
|
Electrical Characteristics |
Nominal Voltage |
48V |
|
Nominal capacity |
30Ah |
|
|
Energy |
1440Wh |
|
|
Internal Resistance |
≤15mΩ |
|
|
Cycle life |
≥4000 cycles @1C 100%DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @1C |
|
|
Standard Charge |
Charge Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
|
|
Charger Current |
100A |
|
|
Max. Charge Current |
100A (depends on BMS) |
|
|
Charge Cut-off voltage |
14.6V±0.2V |
|
|
Standard Discharge |
Max Continuous discharge Current |
100A(depends on BMS) |
|
Max. Pulse Current |
depends on BMS |
|
|
Discharge Cut-off Voltage |
10v |
|
| Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP65 |
|
|
Mechanical |
Cell & Method |
13S1P |
|
Plastic Case |
ABS |
|
|
Dimensions (mm) |
Can be customiszed |
|
|
Weight |
35KG |
|
|
Terminal |
M8 |
|
|
Color |
Black | |

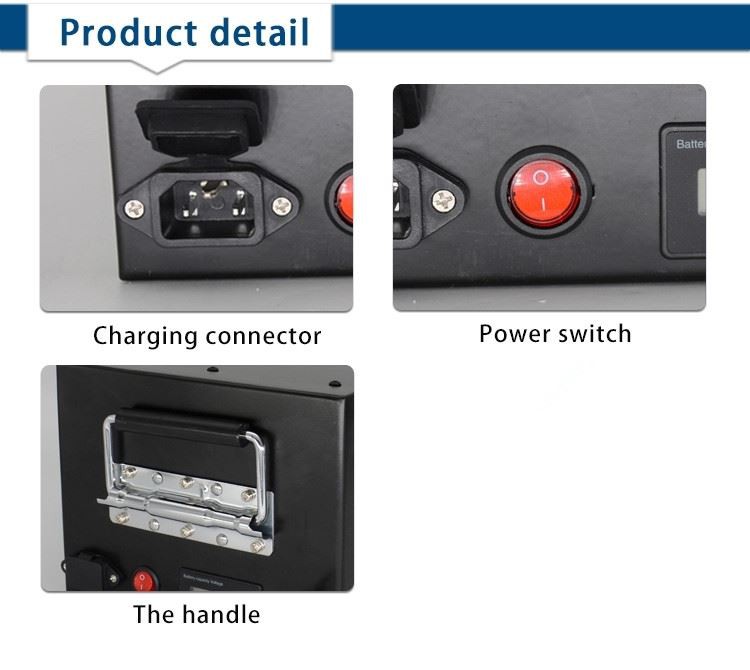

Product Detail
Our Production Line
Our certifications
Q: Can I just try samples for the first order ?
A: Trail order is acceptable. We welcome sample order to test and check quality, but we don't provide free samples.
