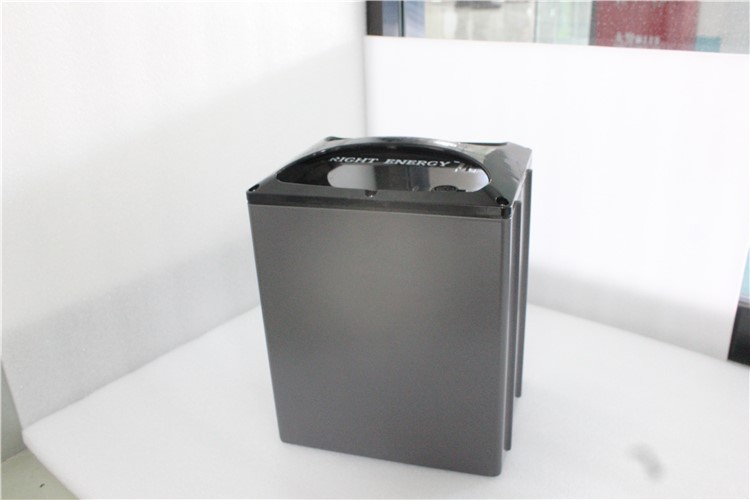

Electric Motorcycle Swappable Battery
Empowering electric motorcycles with swappable battery technology heralds a new era of sustainable and convenient transportation. Swappable batteries are not only a robust solution to challenges like range anxiety and long charging times but also a game-changer that can dramatically improve the electric motorcycle ownership experience.
|
Electrical Characteristics |
Nominal Voltage |
60V |
|
Nominal capacity |
25Ah |
|
|
Energy |
1500Wh |
|
|
Internal Resistance |
≤15mΩ |
|
|
Cycle life |
≥4000 cycles @1C 100%DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @1C |
|
|
Standard Charge |
Charge Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
|
|
Charger Current |
10A |
|
|
Max. Charge Current |
10A (depends on BMS) |
|
|
Charge Cut-off voltage |
14.6V±0.2V |
|
|
Standard Discharge |
Max Continuous discharge Current |
50A(depends on BMS) |
|
Max. Pulse Current |
depends on BMS |
|
|
Environmental |
Charge Temperature |
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP65 |
|
|
Mechanical |
Cell & Method |
14S12P |
|
Plastic Case |
ABS |
|
|
Dimensions (mm) |
Can be customiszed |
|
|
Weight |
35KG |
|
|
Terminal |
M8 |
Product Detail
Our Production Line
Our Certifications
Electric motorcycles equipped with swappable battery technology offer riders the convenience of exchanging depleted batteries for fully charged ones in a matter of minutes. This simple switch can be done at dedicated swapping stations, significantly reducing the downtime associated with traditional charging. A rider could potentially drive endlessly, only stopping for brief intervals to swap batteries, which indirectly expands the motorcycle's range beyond a single battery charge.
