Electric Bike Battery With Charger
Electric Bike battery With Charger

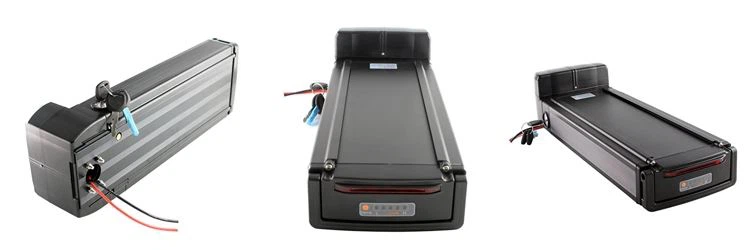

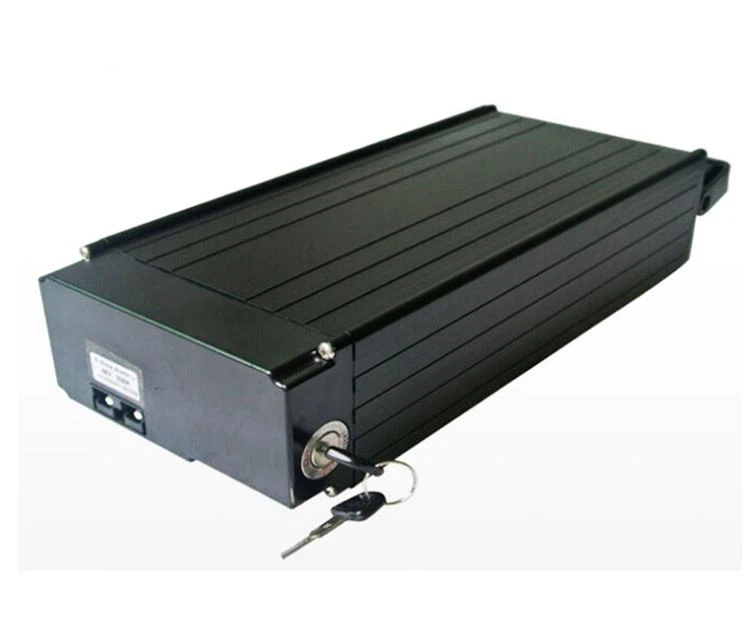

Lithium 48V 20Ah battery pack with charger kit li ion ebike battery for electric bike
Product detail
|
Type |
lithium ion battery 48V 20AH | |
|
1. Basic Characteristics |
||
|
Weight |
4.5kg |
|
|
Dimension(D*H) |

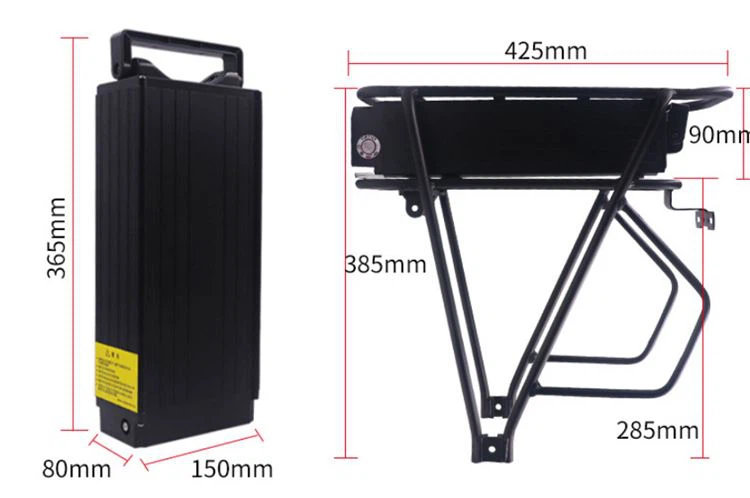

87*430mm |
|
|
Working temperature |
Charge Temperature |
0~45°C |
|
Discharge Temperature |
-20~65°C |
|
|
Retention of charge (store in one month |
≥95% | |
|
2. Technical Data |
||
|
Rated Voltage |
48v | |
|
Rated Capacity C1 |
20ah |
|
|
Battery Resistance |
≤100mΩ |
|
|
Charge |
Way of Charge |
CC/CV(Constant Current;Constant Voltage) |
|
Standard Charge Current |
2A |
|
|
Max Charge Current |
5A |
|
|
Cell Over-Charge Protection Voltage |
4.2V/Cell |
|
|
Discharge |
Continuous Discharge Current |
30A |
|
Discharge Cut-off Voltage |
42v |
|
|
Cell Over-discharge Protection Voltage |
2.8V/cell |
|
|
Ratio Discharge |
1C |
>96%C1 |
|
2C |
>93%C1 |
|
|
3C |
>90%C1 |
|
|
Cycle Life |
≥ 800 Cycles |
|
|
3. Safety Test |
||
|
Short Circuit Safety Test |
No fire, No explosion |
|
|
Overcharge Safety Test |
||
|
Crush Safety Test |
||
|
Needling Safety Test |
||
|
Extrusion Safety Test |
||
|
130°C High Temperature Safety Test |
||
FAQ
Q:Do you have MOQ ?
Re: No limited. More quantity has better price, we will check the best price for you

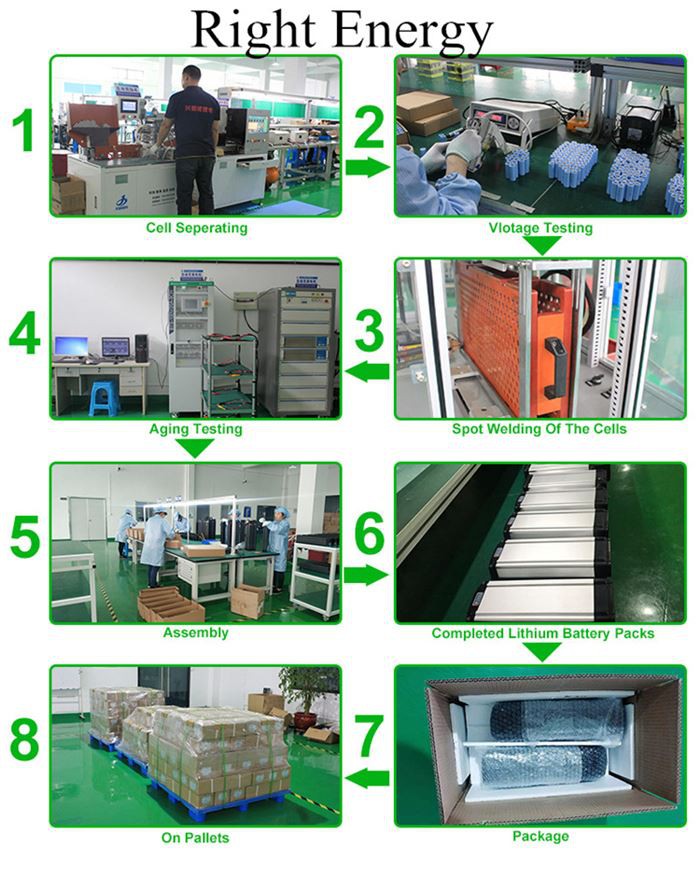

Our Production Line

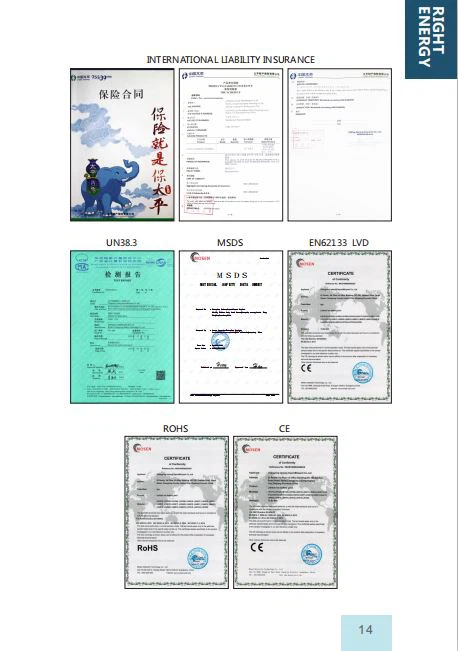

Our certifications
Package and shipping
Q:How long would the delivery after paid?
A:We will arrange produce your order soon after received payment.
Sample order(1-9pcs),5-7 work days, Bulk order, 7-15 work days.
