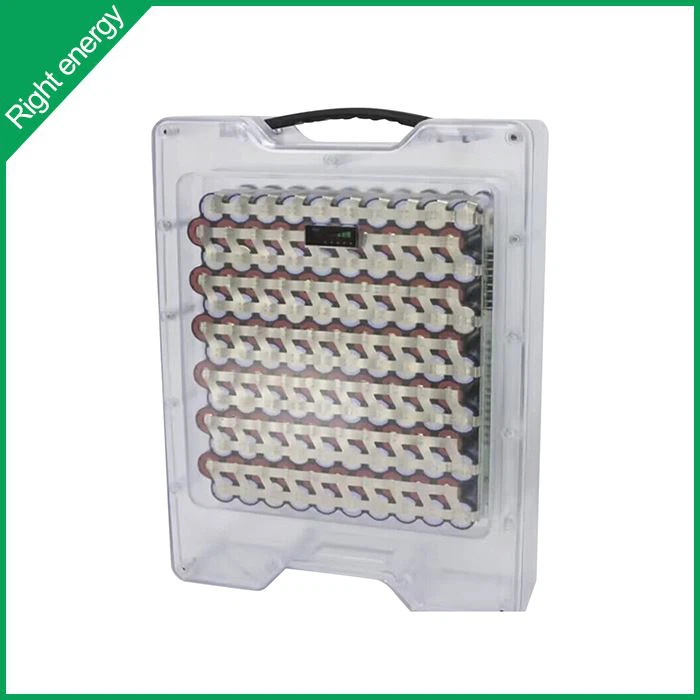

Narrow Cargo Trike Battery
For moving larger loads around, the electric assistance of an e-cargo bike makes riding a lot easier and makes travelling longer distances a more practical option. In fact, there are many more cargo bike options available with a motor than without.
The frequent starts and stops for traffic in urban settings and on delivery runs make getting a cargo bike – whether assisted or non-assisted – moving from a standstill harder than a steady run.
.
|
Electrical Characteristics |
Nominal Voltage |
48V |
|
Nominal capacity |
50Ah |
|
|
Energy |
2400Wh |
|
|
Internal Resistance |
≤15mΩ |
|
|
Cycle life |
≥4000 cycles @1C 100%DOD |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @1C |
|
|
Standard Charge |
Charge Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
|
|
Charger Current |
10A |
|
|
Max. Charge Current |
10A (depends on BMS) |
|
|
Charge Cut-off voltage |
14.6V±0.2V |
|
|
Standard Discharge |
Max Continuous discharge Current |
50A(depends on BMS) |
|
Max. Pulse Current |
depends on BMS |
|
|
Environmental |
Charge Temperature |
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
|
|
Water Dust Resistance |
IP65 |
|
|
Mechanical |
Cell & Method |
13S10P |
|
Plastic Case |
ABS |
|
|
Dimensions (mm) |
Can be customiszed |
|
|
Weight |
35KG |
|
|
Terminal |
M8 |
Product detail
Our Production Line
Our Certifications
How do I design a perfect lithium ion battery pack for my electric bike or scooter?
Strong external structure of the battery pack, and firmly integration of battery with your bike or scooter.
Strong internal structure of the battery pack, ie., the assembly of cells, BMS, connectors, cables, etc.
Fine set-up of your drive system, and other smart applications, which require the communication with the battery.
