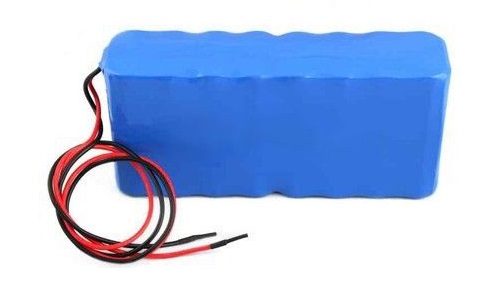

Model 48v 24Ah battery for 48v 1000w electric bike battery

Model 48v 24Ah battery for 48v 1000w electric bike battery

Model 48v 24Ah battery for 48v 1000w electric bike battery Product detail Package and shipping FAQ 1. What is this battery 48v 24Ah for ? It is widely used in the electric bike, electric scooter and electric tricycle. 2. Does it have a case for covering and protection? Its original model does...

Description

Model 48v 24Ah battery for 48v 1000w electric bike battery

Specification

Nominal Voltage

 48V

Nominal Capacity(0.5C,25)

 24Ah

Weight(Approximate)

7.8kg

Dimension(Length*Width*Height)

According   to requirement

Standard Discharge

Max. Continuous Current

30A

Over Current

90A

Cut-off Voltage

39V±1V

Standard Charge

Charge Voltage

54.6V±0.2V

Recommended Charge Current

4A

Charge Time

5hours

Resistance and rates

Internal Resistance

130mΩ

Self-discharge rate

4% per Month

General Features

Assembly cell

 13S10P-18650-3.6v 2.2Ah

BMS discharge protection

 30A-90A

Battery cycle life

950   times(DOD 80%)


Product detail




Package and shipping


FAQ

1.   What is this battery 48v 24Ah for ?

It is widely used in the electric bike, electric scooter and electric tricycle.

2. Does it have a case for covering and protection?

Its original model does not have a casing, but we can add plastic or steel casing for it.It just depends on the order quantity,if the order is large, we will cover the modeling fee.
